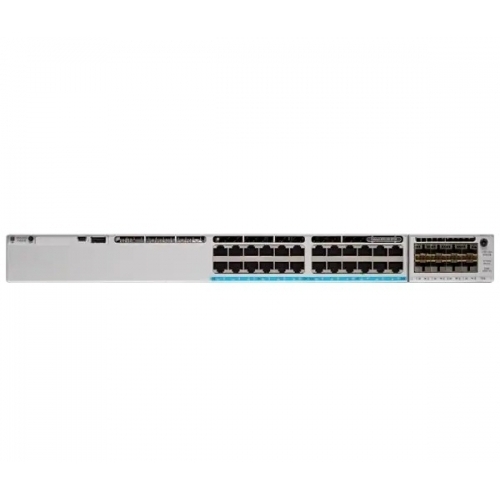

Switch Cisco Catalyst C9300X-24HX-E, 24 porturi, UPoE+

Retea RJ45

24x RJ45

100/1000/2500/5000/10000 Mbps

RJ45 Base-T

Da

Layer 3

UPoE+

1835 W

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz

128-bit AES, 256-bit AES

4094

32K

IPv4: 39000
IPv6: 19500

Da

VPN support, full duplex mode, Non-Stop Forwarding (NSF), Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Ethernet Virtual Private Network (EVPN), TrustSec support, Ethernet over MPLS (EoMPLS), Blue Beacon LED, IP Security (IPSec) support, Zero-touch provisioning (ZTP), CoAP support, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Network-Based Application Recognition (NBAR) 2, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Cisco Discovery Protocol (CDP), Bootstrap Router (BSR) Mechanism, mDNS, Secure Unique Device Identification (SUDI), Preboot Execution Environment, Cisco StackWise-1T technology

1x USB 2.0

Da, 1U

16 GB

16 GB

327.38 Mpps
1398.8 Mpps (cu stacking)

880 Gbps
1880 Gbps (cu stacking)

OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, PIM-SM, static IP routing, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS, BGP for IPv6, MSTP, STP, LISP, IS-ISv4, mVPN

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG

115/240 V (50 - 60 Hz)

Sursa interna 1100W

445 x 44 x 446 mm

6.25 kg

Pentru functionare necesita Licenta DNA Essential
