DESCRIERE PRODUS

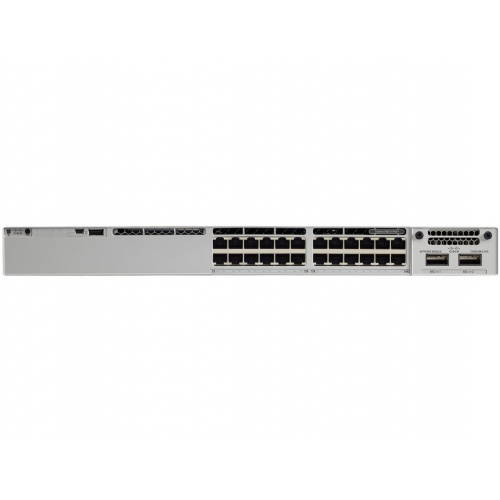

CATALYST 9300 DEEP BUFFER 24P/MGIG UPOE NETWORK ADVANTAGE
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi24x RJ45Viteza Transfer LAN10/100/1000/2500/5000/10000 MbpsTehnologie de cablareRJ45 Base-TManagementDaLayerLayer 3PoEUPoEPoE Budget560 WStandardeIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3atSecuritate128-bit AESVLANs4094Tabela de adrese MAC64KRutare IPIPv4: 64000
IPv6: 32000Caracteristici specialeTrunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, FTP client, 3 fans, Control plane protection (CoPP), 64MB packet buffer, Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLANConectori1x USB 2.0Montare in rackDa, 1UMemorie16 GBMemorie FLASH16 GBMetoda forwarding476.19 Mpps
833.33 Mpps (cu stacking)Switch capacity640 Gbps
1.12 Tbps (cu stacking)Protocoale de rutareOSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPngRemote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONFLED IndicatorsStatusTensiune de intrareAC 100-240 V (50/60 Hz)AlimentareSursa interna 1100WDimensiuni445 x 44 x 470 mmGreutate8.25 kgAltelePentru functionare necesita Licenta DNA Advantage
-
