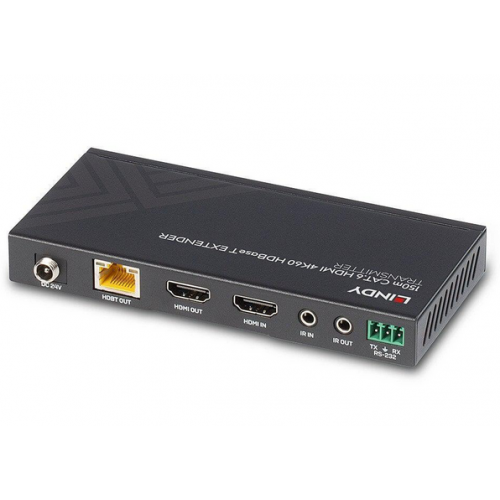

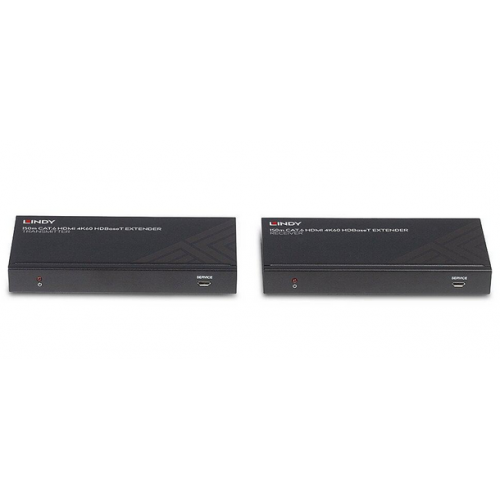

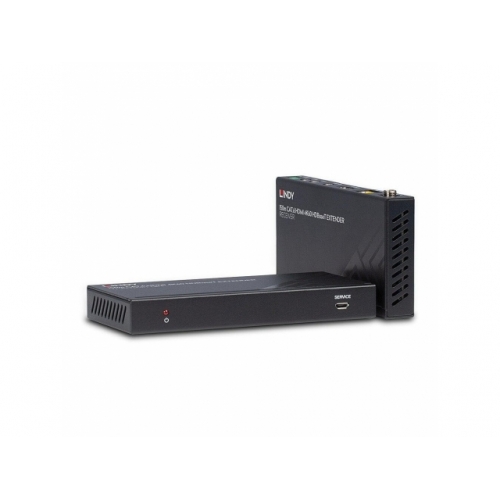

Extender HDMI Lindy LY-38217

Lindy 150m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender Description Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT & Long Reach technology Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4, with additional support for HDR RS-232, CEC pass-through and bi-directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit 100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit 150m (492.12ft) - 1280x720@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through Separate Audio Ports: - IR Support: 20KHz - 60KHz CEC Support: Pass-through Serial Interface: RS-232 (Bi-directional) Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: VS010-A0 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) Connectors Transmitter Input: HDMI Type A (Female), IR (Female) Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female) Receiver Input: RJ-45 (Female) Receiver Output: HDMI Type A (Female), 3.5mm (Female) Bi-directional Ports: RS-232 (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) Housing Material: Metal Net Weight: 0.76kg (1.68lb) Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in) Gross Weight: 0.97kg (2.17lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38217 EAN: 4002888382175 https://www.lindy-international.com/150m-Cat-6-HDMI-4K60-IR-RS-232- HDBaseT-Extender-.htm?websale8=ld0101.ld021102&pi=38217 &ci=10
