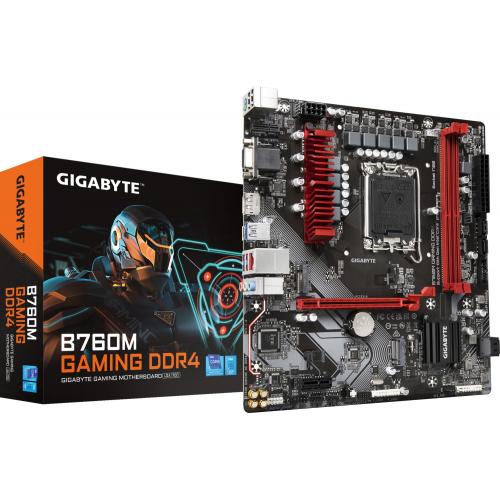

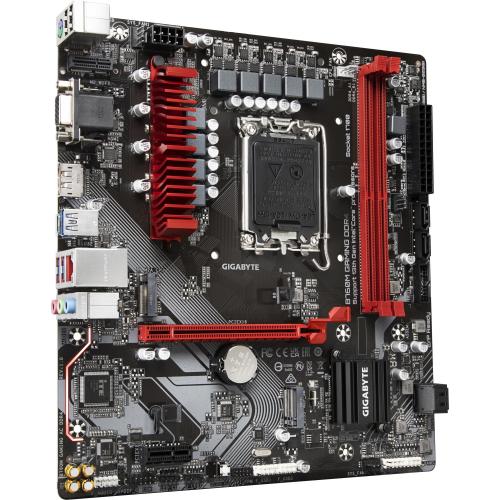

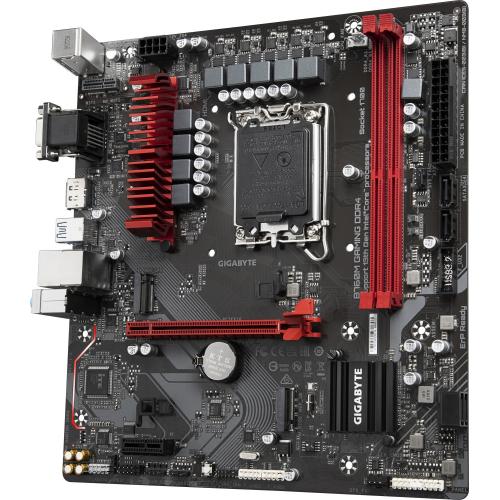

Placa de baza Gigabyte B760M GAMING DDR4, Intel B760, Socket 1700, mATX
Retur Garantat
Deschidere Produs
Plata Securizata
Service Autorizat
DESCRIERE PRODUS
B760M GAMING DDR5 | Socket LGA 1700 | 4 x DDR4 DIMM (up to 128GB) | Audio Realtek ALC897 | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | 1 x PCI Express x16, 1x PCI Express x1| 2 x M.2 Socket, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 | 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x DisplayPorts, 1 x HDMI port, 1 x D-sub, 1 x USB 3.2 Gen 1 Type-A, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 1 x RJ-45 port, 2 x USB 2.0, 3 x audio jacks| Micro ATX
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtekRAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaIntel 2.5GbE LANBIOS128Mb AMI UEFI BIOSInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)3 -
Procesor
CPU Socket1700ChipsetB760Producator chipsetIntelProcesoare suportateIntel 12/13th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM64 GBTehnologieDual channelFrecvente suportate5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHzSloturi memorie2 -
Conectivitate

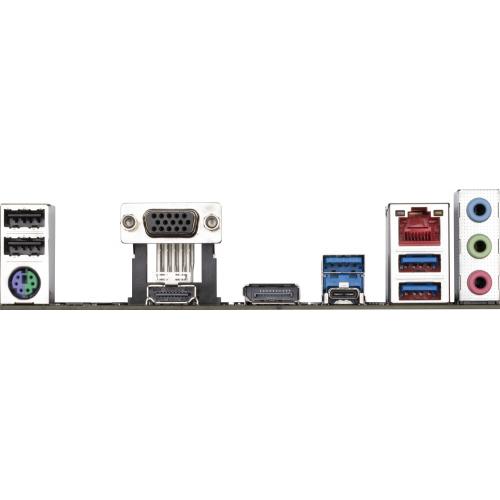

HDMI1DisplayPort1RJ-451USB 2.02USB 3.2 Gen1 tip A3USB tip C1Audio jacks3PS/2 Combo Mouse/Tastatura1Altele1x D-sub -
Sloturi
PCI Express 3.01 (x1)PCI Express 4.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)24.4 x 22.5 cm
-
