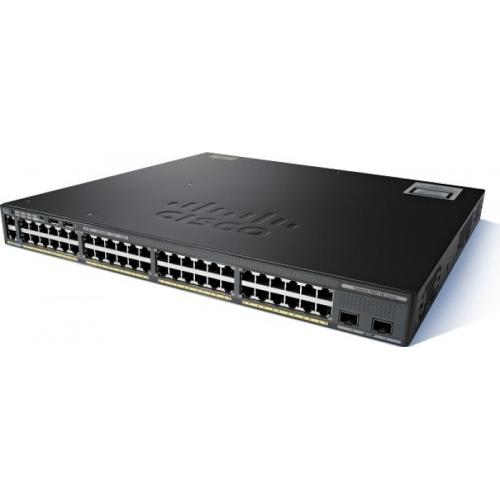

Switch Cisco Catalyst 2960X-48TS-LL 48 Ports +2 SFP LAN Lite

Retea RJ45

48x RJ-45

Forwarding Rate: 64-Byte L3 Packets - 104.2 Mpps
Forwarding bandwidth 50 Gbps
Switching bandwidth : 100 Gbps

Cu Management
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
CISCO-FLEXSTACK-PLUS-MIB (2960-X)
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
NET-ADDRESS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-DHCP-SNOOPING-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE
RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-POE-EXTENSIONS-MIB
CISCO-PORT-QOS-MIB � CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-PRODUCTS-MIB

Fara PoE

RFC 1643 - Ethernet Interface MIB
RFC 1757 - RMON
RFC 1901 - SNMP v2C
RFC 1902-1907 - SNMP v2
RFC 768 - UDP
RFC 783 - TFTP
RFC 791 - IP
RFC 792 - ICMP
RFC 793 - TCP
RFC 826 - ARP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af and IEEE 802.3at
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
IEEE 802.3az
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.1ax
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
RFC 1981 - Maximum Transmission Unit (MTU) Path Discovery IPv6
FRC 2068 - HTTP
RFC 2131 - DHCP
RFC 2138 - RADIUS
RFC 2233 - IF MIB v3
RFC 2373 - IPv6 Aggregatable Addrs
RFC 2460 - IPv6
RFC 2461 - IPv6 Neighbor Discovery
RFC 2462 - IPv6 Autoconfiguration
RFC 2463 - ICMP IPv6
RFC 854 - Telnet
RFC 951 - Bootstrap Protocol (BOOTP)
RFC 959 - FTP
RFC 1112 - IP Multicast and IGMP
RFC 1157 - SNMP v1
RFC 1166 - IP Addresses
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
RFC 1305 - NTP
RFC 1492 - TACACS+
RFC 1493 - Bridge MIB
RFC 1542 - BOOTP extensions
RFC 2474 - Differentiated Services (DiffServ) Precedence
RFC 2597 - Assured Forwarding
RFC 2598 - Expedited Forwarding
RFC 2571 - SNMP Management
RFC 3046 - DHCP Relay Agent Information Option
RFC 3376 - IGMP v3
RFC 3580

Maximum active VLANs 64
VLAN IDs available 4096

Cross-stack QoS
The Cisco committed information rate (CIR)
Rate limiting
Operational Simplicity Features :
Dynamic Host Configuration Protocol (DHCP)
Layer 2 trace route
Trivial File Transfer Protocol (TFTP)
Network Timing Protocol (NTP)
Smart Multicast, with Cisco FlexStack-Plus technology
Internet Group Management Protocol (IGMP)
Cisco VLAN Trunking Protocol (VTP)
Remote Switch Port Analyzer (RSPAN)
Remote Monitoring (RMON)
Flow-based rate limiting
802.1p class of service (CoS)
Differentiated Services Code Point (DSCP)
Switching Database Manager (SDM)
Local Proxy Address Resolution Protocol (ARP)
VLAN1 minimization
Multicast VLAN Registration (MVR)
Per-port broadcast, multicast, and unicast storm control
Voice VLAN
Enhanced Quality of Service :
eight egress queues per port
Shaped Round Robin (SRR)
Weighted Tail Drop (WTD)
Stacking master configuration management
Autonegotiation
Dynamic Trunking Protocol (DTP)
Port Aggregation Protocol (PAgP)
Link Aggregation Control Protocol (LACP)
Automatic media-dependent interface crossover (MDIX)
Unidirectional Link Detection Protocol (UDLD)

Da

DRAM : 512 MB
Flash memory : 64 MB

100 to 240 VAC, 1A - 0.5A, 50 to 60Hz

4.0kg

4.5 x 27.9 x 44.5 cm

44.4W

TACACS+ and RADIUS authentication
MAC Address Notification
Multilevel security on console access
Cisco Threat Defense
Private VLANs
Unicast Reverse Path Forwarding (RPF)
Multidomain Authentication
Bridge protocol data unit (BPDU) Guard
Spanning Tree Root Guard (STRG)
IGMP filtering
Dynamic VLAN assignment
Cisco TrustSec
Comprehensive 802.1X
IPv6 First-Hop Security
Device Sensor and Device Classifier
Cisco Trust Anchor Technology (TAT)
Access Control Lists
Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
Switched Port Analyzer (SPAN)

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status: System, RPS, Stack link status, link duplex, PoE, and link speed

APM86392 600MHz dual core
