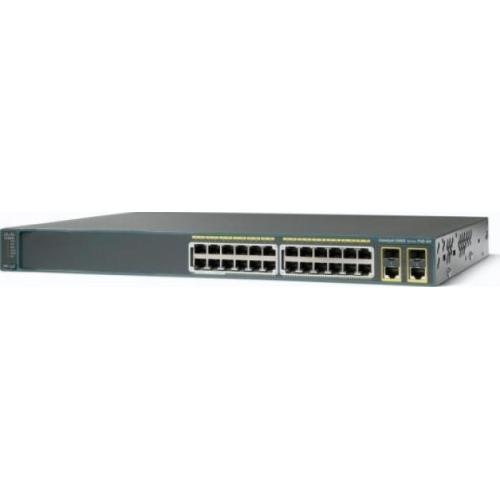

Switch Cisco Catalyst 2960XR-24TS-I 24 Ports +4 SFP IP Lite

Retea RJ45

24x RJ-45

10/100/1000 Mbps

SNMPv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
CISCO-FLEXSTACK-PLUS-MIB (2960-X)
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
CISCO-POE-EXTENSIONS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-PRODUCTS-MIB
CISCO-TC-MIB
CICSO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE
RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB CISCO-DHCP-SNOOPING-MIB

Layer 3

Fara PoE

SNMP v1, v2c, and v3
IEEE 802.3az
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.1ax
RFC 768 - UDP
RFC 783 - TFTP
RFC 791 - IP
RFC 792 - ICMP
RFC 793 - TCP
RFC 826 - ARP
RFC 854 - Telnet
RFC 2571 - SNMP Management
RFC 3046 - DHCP Relay Agent Information Option
RFC 3376 - IGMP v3
RFC 3580 - 802.1X RADIUS
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
RMON I and II standards
IEEE 802.1D Spanning Tree Protocol
EEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w IEEE 802.1X
RFC 2463 - ICMP IPv6
RFC 2474 - Differentiated Services (DiffServ) Precedence
RFC 2597 - Assured Forwarding
RFC 2598 - Expedited Forwarding
RFC 1305 - NTP
RFC 1492 - TACACS+
RFC 1493 - Bridge MIB
RFC 1542 - BOOTP extensions
RFC 1643 - Ethernet Interface MIB
RFC 1757 - RMON
RFC 2233 - IF MIB v3
RFC 2373 - IPv6 Aggregatable Addrs
RFC 2460 - IPv6
RFC 2461 - IPv6 Neighbor Discovery
RFC 2462 - IPv6 Autoconfiguration
RFC 1901 - SNMP v2C
RFC 1902-1907 - SNMP v2
RFC 1981 - Maximum Transmission Unit (MTU) Path Discovery IPv6
FRC 2068 - HTTP
RFC 2131 - DHCP
RFC 2138 - RADIUS
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af and IEEE 802.3at
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
RFC 951 - Bootstrap Protocol (BOOTP)
RFC 959 - FTP
RFC 1112 - IP Multicast and IGMP
RFC 1157 - SNMP v1
RFC 1166 - IP Addresses
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery

Maximum active VLANs 1023
VLAN IDs available : 4096

Policy-based routing (PBR)
Hot Standby Routing Protocol (HSRP)
Virtual Router Redundancy Protocol (VRRP)
Protocol Independent Multicast (PIM)
Advanced IP unicast routing protocols (OSPF for Routed Access)
Equal-cost routing
IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng

Da
Kit de stackare optional

Forwarding Rate: 64-Byte L3 Packets - 71.4 Mpps
Forwarding bandwidth : 108 Gbps
Switching bandwidth : 216 Gbps

Trivial File Transfer Protocol (TFTP)
Network Timing Protocol (NTP)
Cross-stack QoS
The Cisco committed information rate (CIR)
Rate limiting
Operational Simplicity Features :
Dynamic Host Configuration Protocol (DHCP)
Remote Switch Port Analyzer (RSPAN)
Remote Monitoring (RMON)
Layer 2 trace route
Flow-based rate limiting
802.1p class of service (CoS)
Differentiated Services Code Point (DSCP
Switching Database Manager (SDM)
Local Proxy Address Resolution Protocol (ARP)
VLAN1 minimization
Per-port broadcast, multicast, and unicast storm control
Voice VLAN
Cisco VLAN Trunking Protocol (VTP)
Enhanced Quality of Service :

eight egress queues per port
Shaped Round Robin (SRR)
Weighted Tail Drop (WTD)
Stacking master configuration management
Autonegotiation
Dynamic Trunking Protocol (DTP)
Port Aggregation Protocol (PAgP)
Smart Multicast, with Cisco FlexStack-Plus technology
Internet Group Management Protocol (IGMP)
Multicast VLAN Registration (MVR)
Link Aggregation Control Protocol (LACP)
Automatic media-dependent interface crossover (MDIX)
Unidirectional Link Detection Protocol (UDLD)

Da

Flash memory : 128 MB
DRAM : 512 MB

100 to 240 VAC, 1A - 0.5A, 50 to 60Hz

5.9 kg

4.45 x 40.8 x 44.5 cm

370W

TACACS+ and RADIUS authentication
MAC Address Notification
Multilevel security on console access
Cisco Threat Defense
Private VLANs
Unicast Reverse Path Forwarding (RPF)
Multidomain Authentication
Bridge protocol data unit (BPDU) Guard
Spanning Tree Root Guard (STRG)
IGMP filtering
Dynamic VLAN assignment
Cisco TrustSec
Comprehensive 802.1X
IPv6 First-Hop Security
Device Sensor and Device Classifier
Cisco Trust Anchor Technology (TAT)
Access Control Lists
Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
Switched Port Analyzer (SPAN)

Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Power Management :
Switch Hibernation Mode (SHM)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Cisco EnergyWise
